CNC 6-sided Drilling Machine ND512TS

Highlights

  • Multi-functional CNC drilling machine is able to drill from 6 sides.
  • Simple routing meets different process requests and gives batch-size-one production max flexibility.
  • Software is open port, support most formats in market.
  • Machine is configured with one top and one bottom drilling blocks,one 3.5kw top main spindle.

Technician Data

ModelND512TS
Panel sizeThickness：10-60mm    Width：30-1200mmLength： 200- 2800mm
Max speed（X/U/Y/Z）135/135/75/30/30(Vaxis)m/min
Spindle powertop：5.5kw，bottom：3.5kw
Max speed（X/U/Y/Z）135/135/75/30m/min
Vert.drill10
Horiz. drillX direction：2×2  Y direction：2×2
Total power21.07kw
Control systemSYNTECH
Machine size3962×3010×2320mm

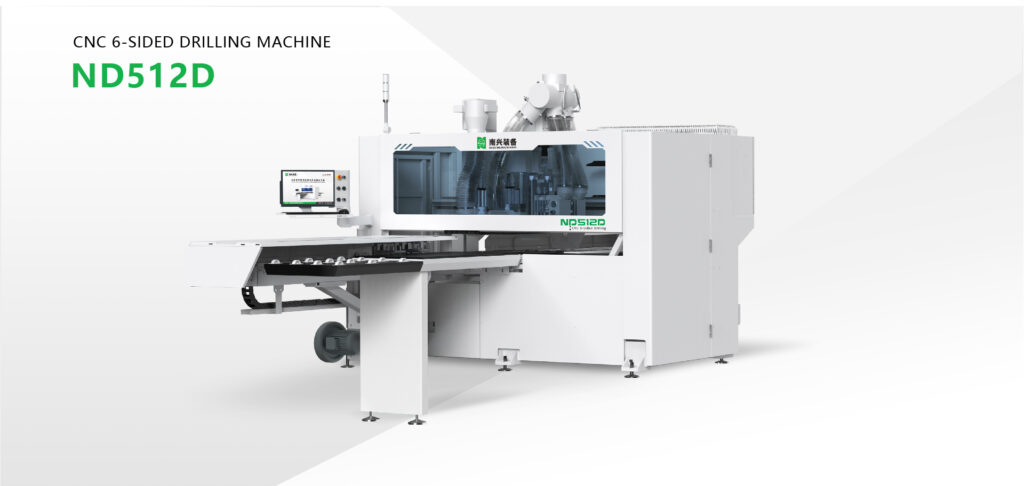

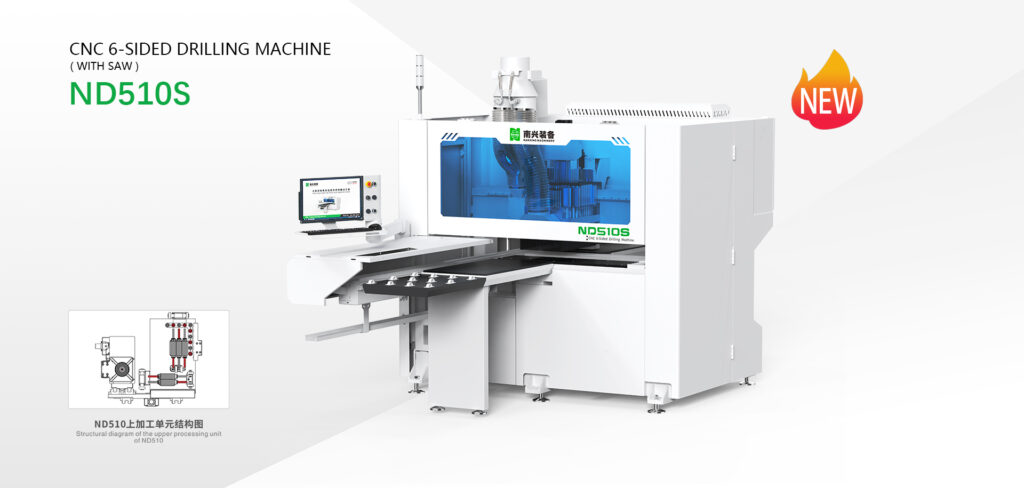

You might like it
