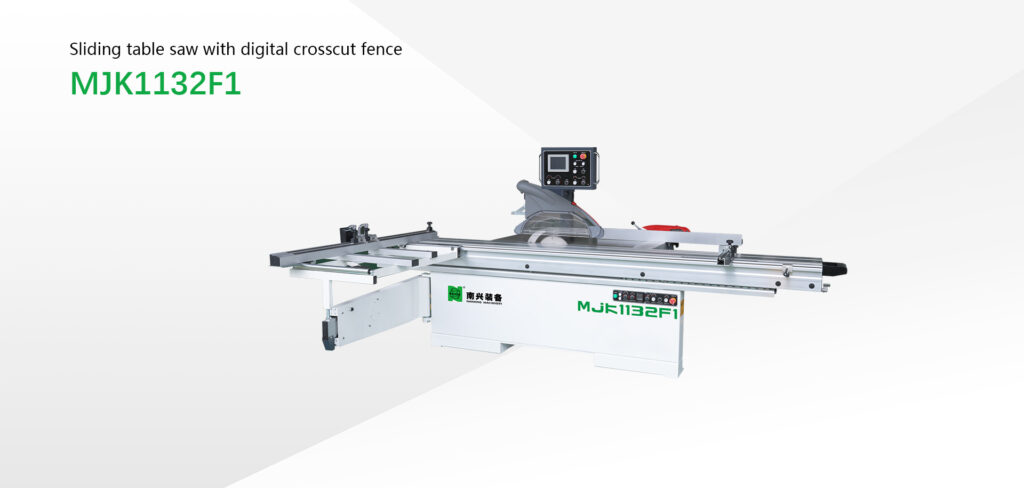

NC Sliding Table Saw MJK1132F1
Highlights

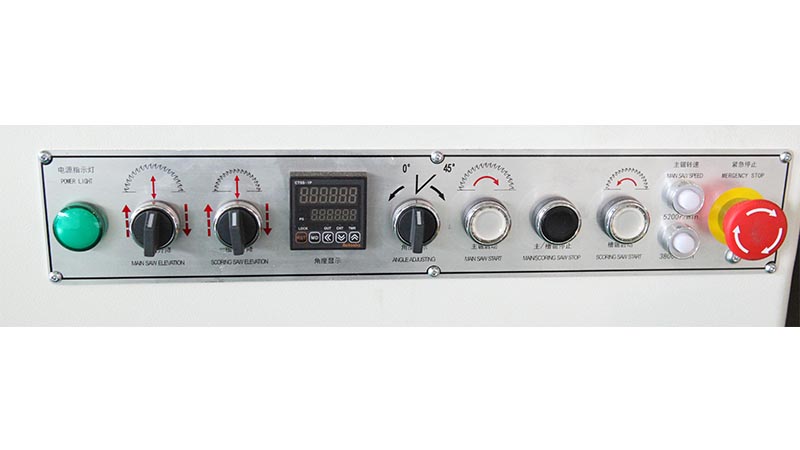

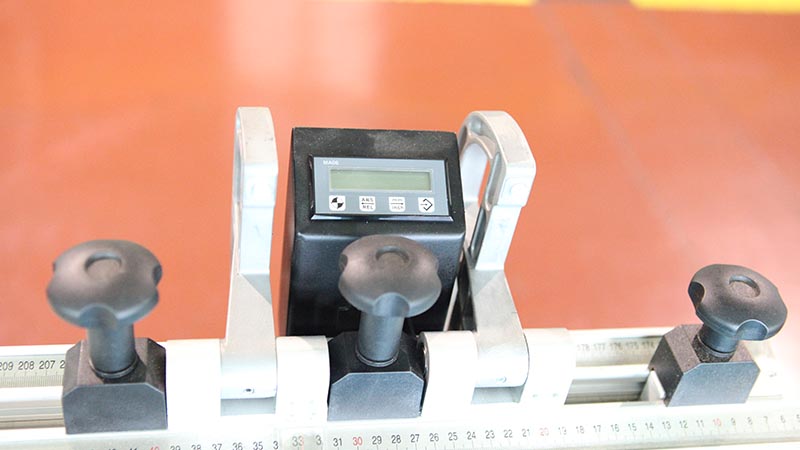

- Crosswise guiding board can move automatically by controlling on touch screen, easy and precise.
- Strong machine body for great stability and longer service life.
- Height of saw blade can be adjusted electrically just by one button.
- Main saw and scoring saw can tilt within 0-45°by using hand wheel.
Technician Data
| Model | MJK1132F1 |
| Cutting length | 3100mm |
| 0°cutting thickness | 100mm |
| 45°cutting thickness | 70mm |
| Main saw rotating speed | 3800/5200rpm |
| Main saw motor | 5.5kw |
| Scoring saw rotating speed | 9000rpm |
| Scoring saw motor | 1.1kw |
| Saw blade tilting | 0-45° |
| Dust extraction | φ120mm |
| Total power | 7kw |
| Overall size | 3400×3400×1680mm |
| Net weight | 1000kg |
