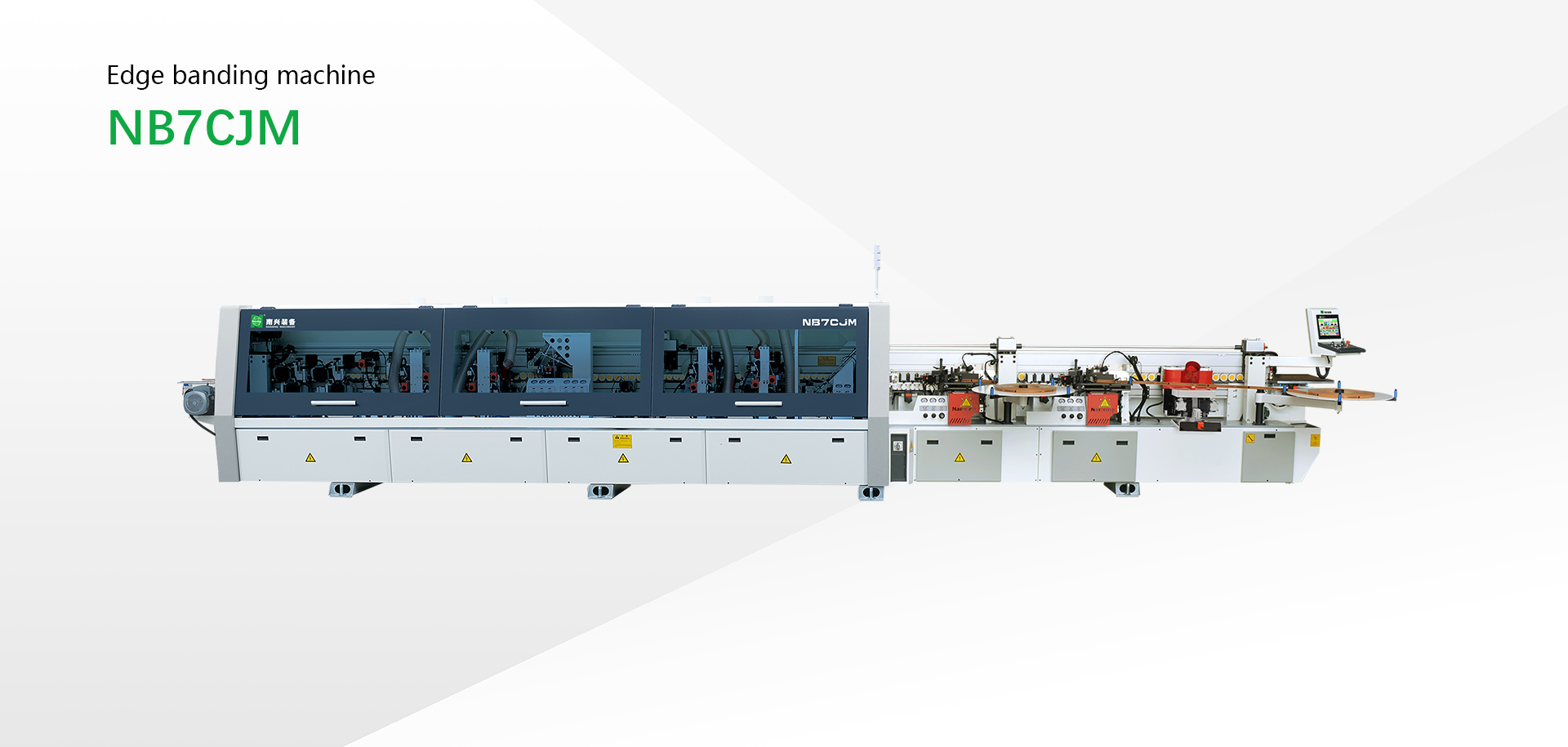

Edge Banding Machine with Double

Gluing Units NB7CJM

Highlights

  • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming;
  • Additional pre-milling at front;
  • Two sets of gluing, fine trimming, scraping and buffing units make it easy and fast to switch between dark and light color glue which meet flexible edge banding requirements. Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero. Low investment, big benefits.
  • Most electric components are in world famous brand.
ModelNB671EM
Panel length≥120mm
Panel width≥80mm
Min panel size200mm×80mm
Panel thickness9-60mm
Edge tape thickness0.4-3mm
Feeding speed16/20/24m/min
Total power30kw
Overall dimension9,800×1,050×1,650mm
Net weight3,670KG
